Display and Control of the Infrared Sauna (ATS-1)

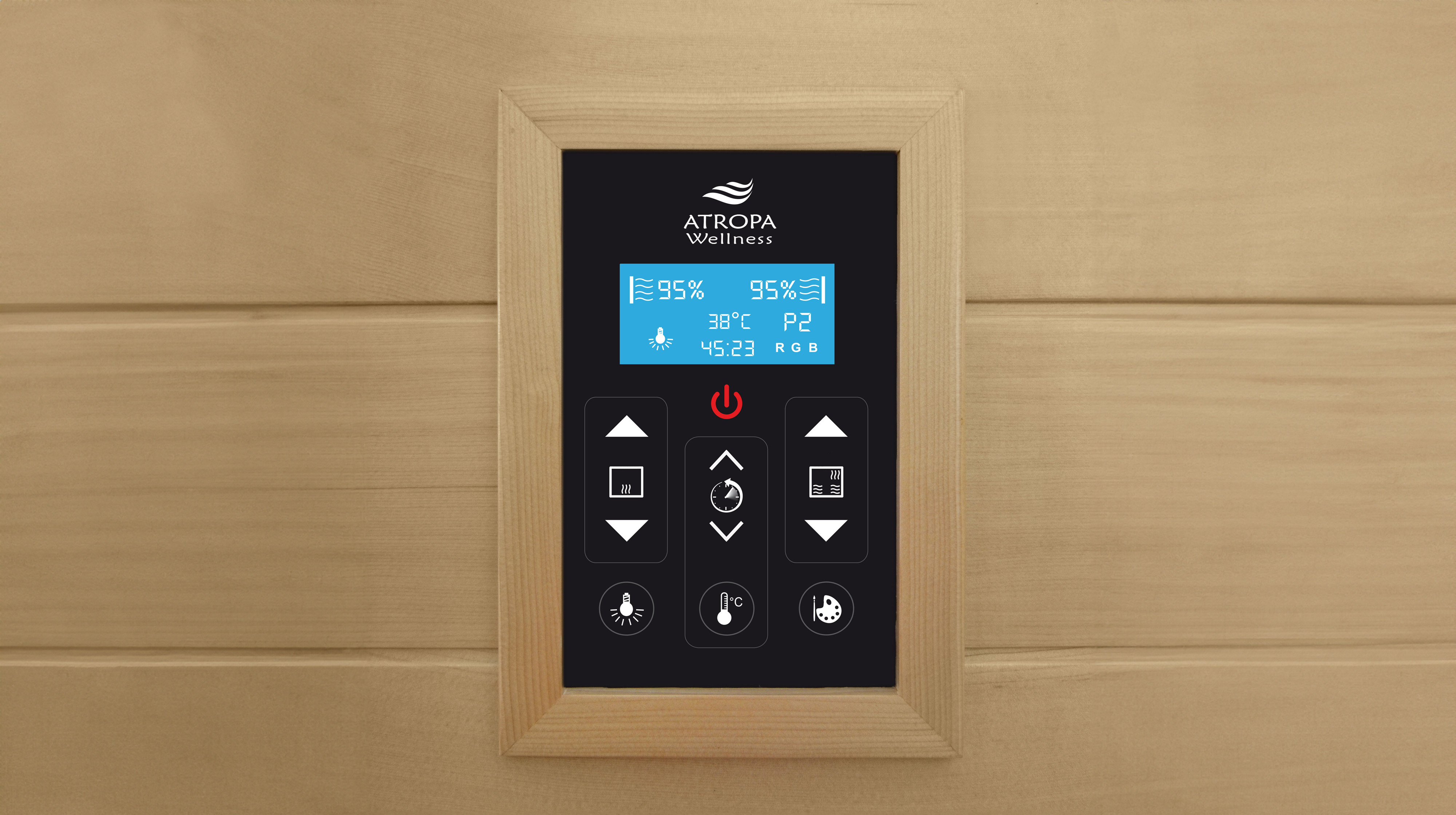

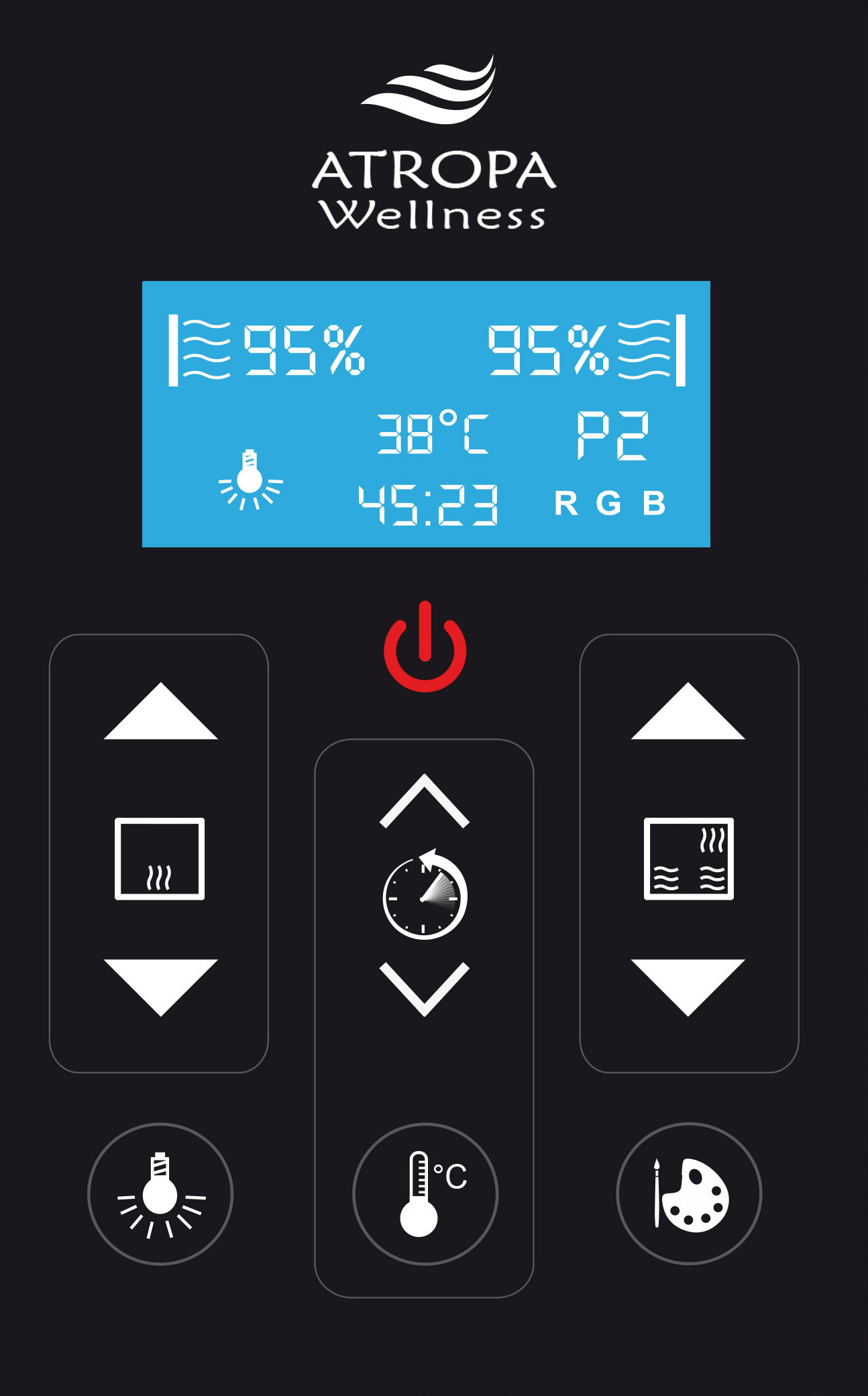

The Infrared Sauna is operated simply and intuitively via the high-gloss display. It is also possible to change the desired temperature, the individual heater intensity (left and right sides can be regulated separately), the remaining time or the light options during the session. This is done simply by pressing the respective symbol. The settings are displayed promptly and directly on the LCD display.
Function overview
The Infrared Sauna is controlled by pressing the touch display inside and outside or by remote control. The following settings are possible:
Intensity control
- Settings possible in 5% steps from 0 to 100%
- Intensity of the spinal heater can be regulated independently of the other infrared heaters (e.g. spinal heater 95%, other infrared heaters 65%)
- 4 automatic programs that automatically regulate the time and intensity
Time setting
- simple operation by pressing "+" or "-"
- adjustable from 1 to 60 minutes, can be changed at any time
- low electricity costs: € 0.20 to € 0.40 per session
- recommended session duration: 20 min to 45 min
Temperature setting
- simple operation by pressing "+" or "-"
- proven thermostat circuit
- adjustable from 25°C to 65°C
- recommended cabin temperature: 35°C to 55°C
Light settings
- strong reading light, one for each seat
- Color light therapy with 6 colors, single and alternating mode
In addition to the settings on the display, there is also the option of switching each infrared heater on or off individually using a mechanical switch.
This can save energy on the one hand, and on the other hand it contributes to the greatest possible individualization of the Infrared Sauna. The position of the switch shows whether the infrared heater is switched on or off.
Automatic program control
In addition to the manual selection of temperature, duration and intensity, the innovative control unit of the ATS series also has an automatic program function. This controls the parameters independently, taking into account the latest physiological findings, so that the user can simply sit back and relax.
The Programs
Therapy program
- intensive infrared radiation
- for use with physiological complaints
- optimal for pain relief
Detoxification
- helps the body to detoxify naturally
- supports the metabolism
Refresh / Revitalize
- gives new energy to the psyche and physique
- stimulates circulation
Gentle infrared radiation
- Relaxing after a hard day
- before and after sporting activity
- Rest for body and soul
Solid Control
All control elements are carefully tested for quality and durability before being launched on the market. The circuits are subject to a thorough testing procedure in order to meet the high demands for use in Infrared Saunas. Precise attention is paid to the correct dimensioning to match the energy consumption as well as to the heat resistance. A clean wiring and the thermally optimal arrangement of the elements are obligatory.
Should a problem occur, all elements can be easily replaced.
