Display and Control of the ATR Series
The control of the ATR Infrared Saunas represents a technological leap compared to conventional controls.
The operation of the Infrared Sauna is simple and intuitive via the high-gloss display. It is also possible to change the desired temperature, the individual heater intensity (left and right sides can be regulated separately), the remaining time, or the light options during the session. This is done simply by pressing the respective symbol. The settings are displayed promptly and directly on the LCD screen.
Additionally, it is possible to adjust or dim the intensity of the reading light and the colored light. Furthermore, the ATR series features the MyFamily memory function, which allows you to recall your favorite settings with just one touch.
Function Overview

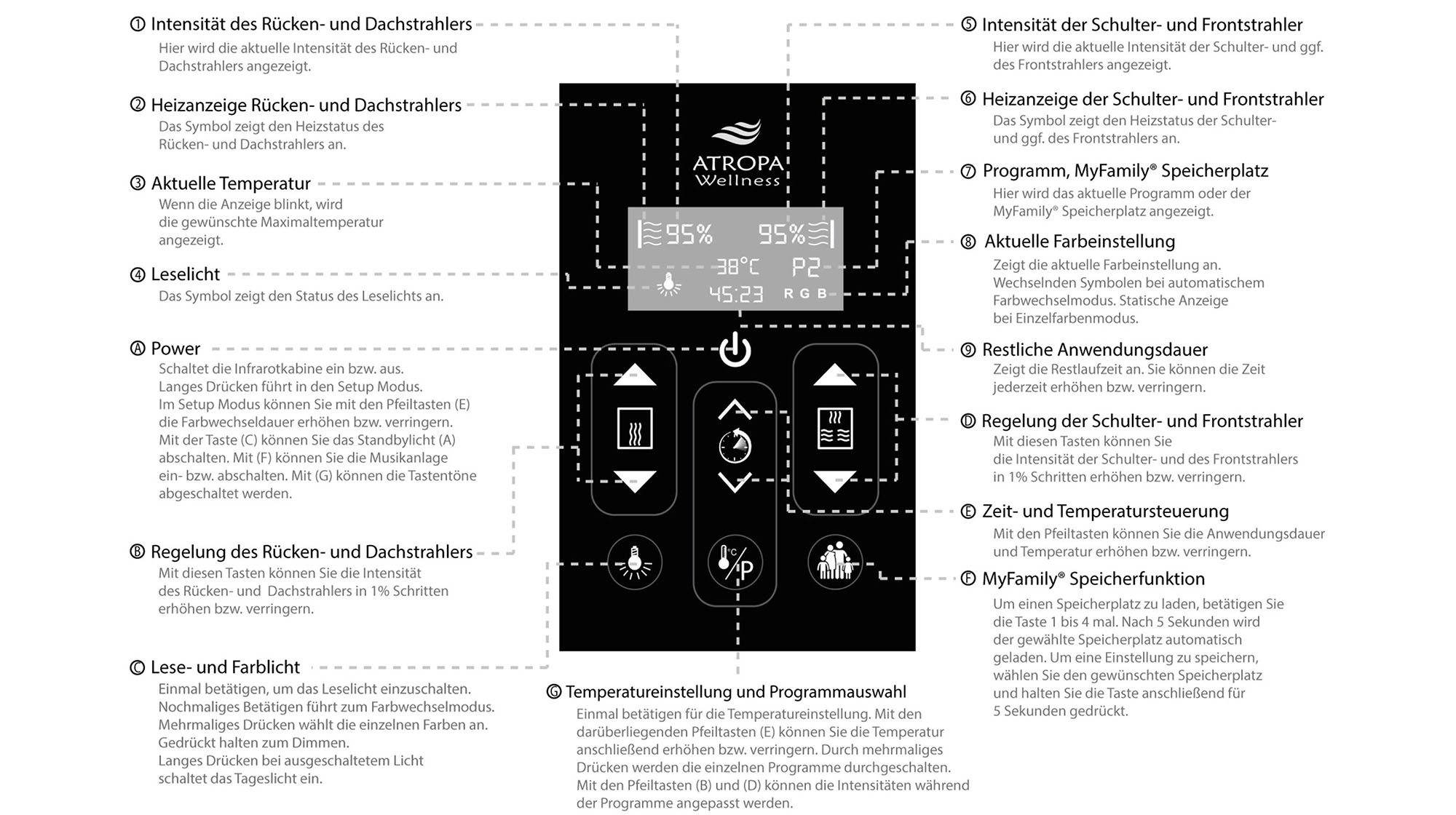

Control of the ATR Series for one person

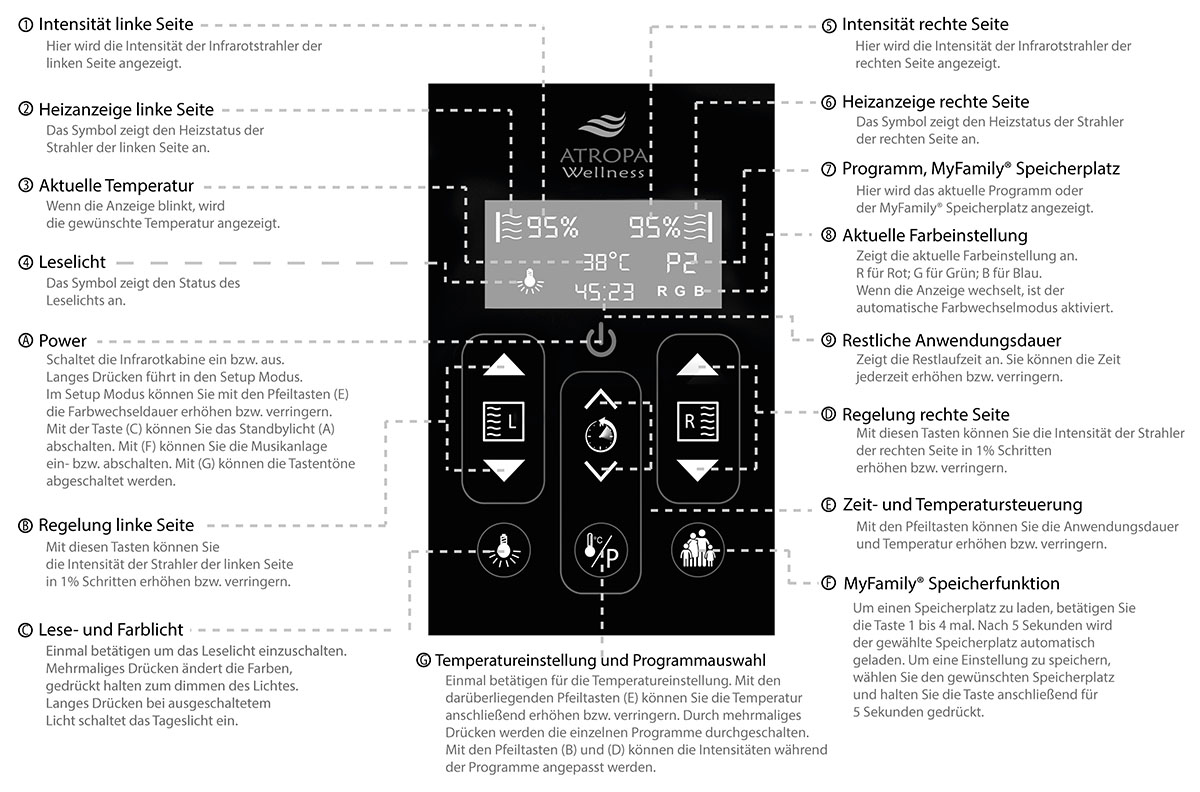

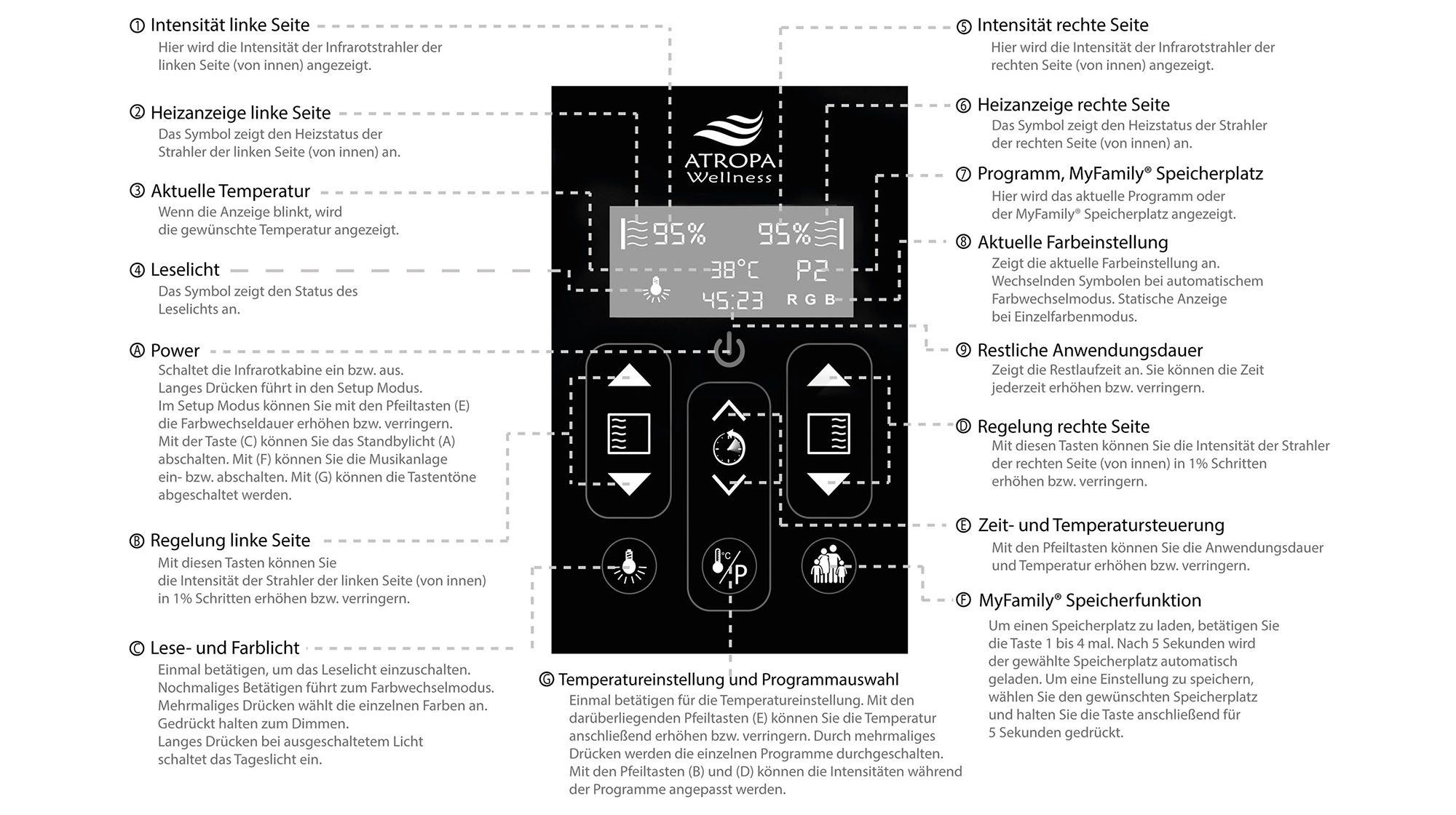

Control of the ATR Series for two people
The Infrared Sauna is controlled by pressing the touch display inside and outside. The following settings are possible:
Intensity Control
- Settings possible in 1% increments from 0 to 100%
- ATR series for one person: Back and shoulder heaters' intensity can be regulated separately
- ATR series for two people: left and right side individually adjustable in intensity
- 4 automatic programs, which control the time and intensity automatically
Time Setting
- simple operation by pressing the arrow keys
- adjustable from 1 to 90 minutes, can be changed at any time
- low electricity costs: € 0.20 to € 0.40 per session
- recommended session duration: 20 min to 45 min
Temperature Setting
- simple operation by pressing the temperature symbol and arrow keys
- proven thermostat circuit
- adjustable from 25°C to 65°C
- recommended cabin temperature: 35°C to 55°C
Light Settings
- strong, dimmable reading light, modern LED technology
- dimmable color light therapy with 12 colors, single and alternating mode; LED panel
In addition to the settings on the display, it is also possible to switch each infrared heater on or off individually using a mechanical switch.
On the one hand, this can save energy, and on the other hand, it contributes to the greatest possible customization of the Infrared Sauna. The position of the switch indicates whether the infrared heater is switched on or off.

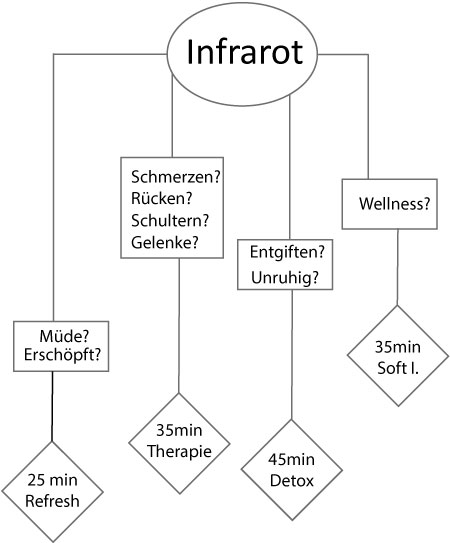

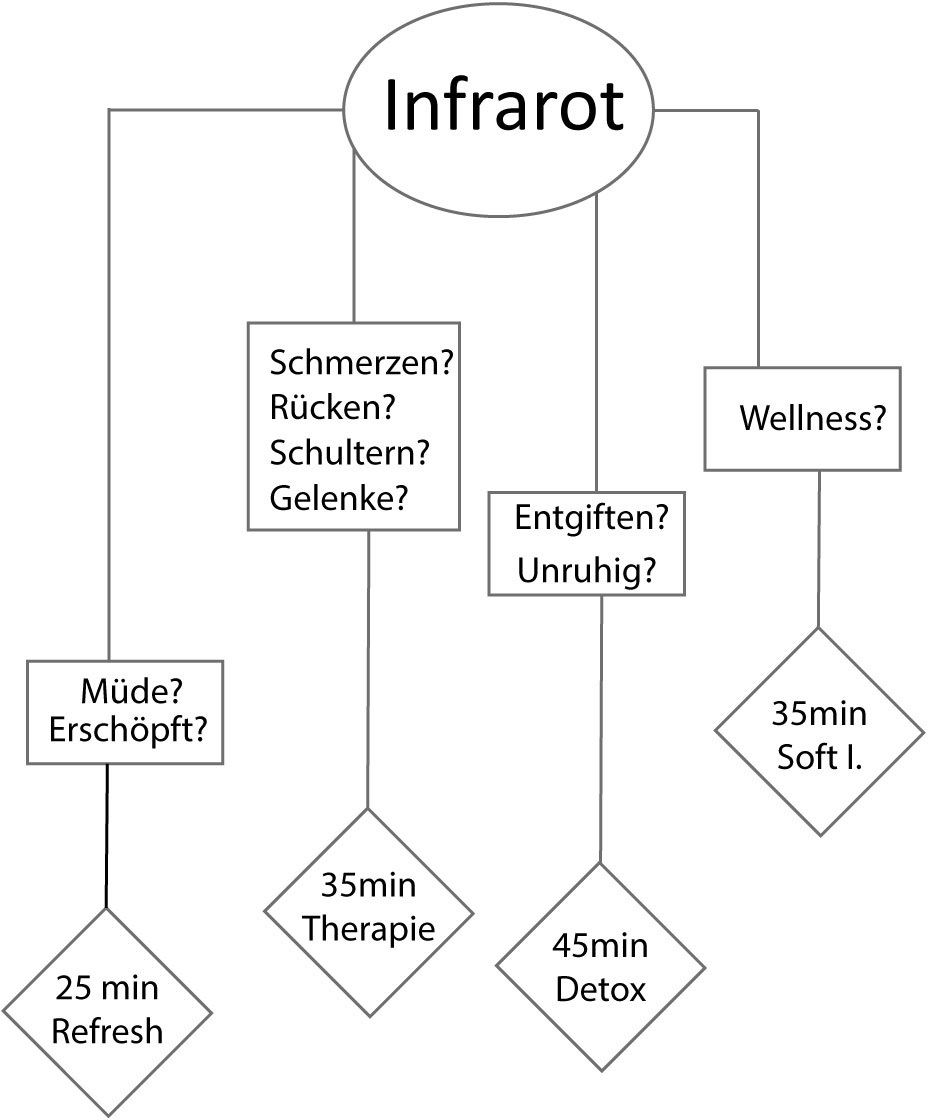

Automatic Programs
The innovative control unit of the ATR-Series has, in addition to the manual selection of temperature, duration, and intensity, an automatic program function. This controls the parameters independently, taking into account the latest physiological findings, so that the user can simply lean back and relax.
The Programs
Therapy Program
- intensive infrared radiation
- for use with physiological complaints
- optimal for pain relief
Detoxification
- helps the body to detoxify naturally
- supports the metabolism
Refresh / Revitalize
- gives new energy to the psyche and physique
- stimulates circulation

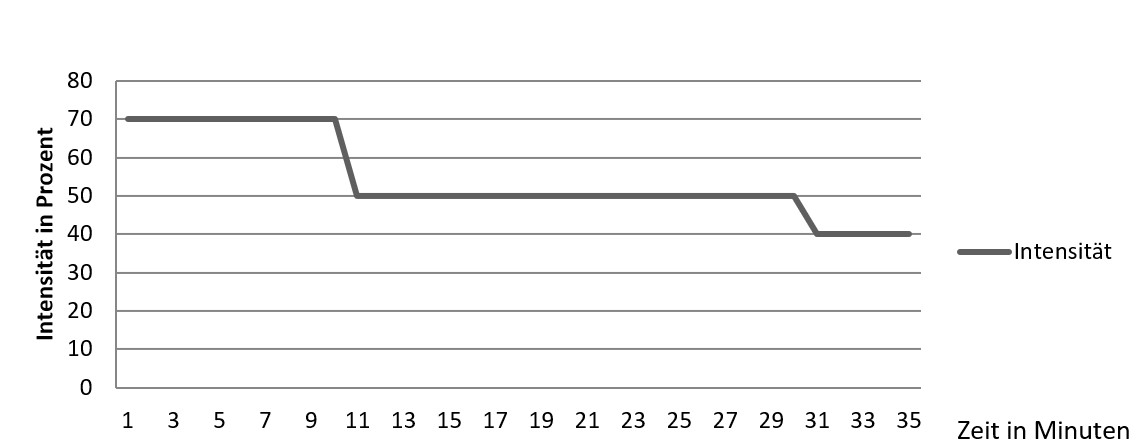

Gentle Infrared Radiation
- Relax after a hard day
- before and after sports activities
- Recovery for body and mind
MyFamily® Memory Function
With the MyFamily® memory function, you can easily save your favorite settings and load them again for your next session.
This allows you to implement your wishes even faster.
Application
There are four memory slots available.
The following values are saved with the MyFamily® function:
- Intensity of the infrared heaters
- Color or reading light settings
- remaining session duration
- desired maximum temperature
Advantages
- faster access to your settings
- no unnecessary trial and error to find the right setting again
- optimal for multiple users
Solid Control Unit
All control elements are carefully tested for quality and durability before market launch. The circuits undergo a thorough testing process to meet the high demands for use in Infrared Saunas. Precise attention is paid to the correct dimensioning to match the energy consumption as well as to the heat resistance. A clean wiring and the thermally optimal arrangement of the elements are mandatory.
Should a problem ever occur, all elements can be easily replaced.
