Frequently Asked Questions: Does the installation site have to meet certain requirements and how long does the assembly take?
You can set up the ATROPA Infrared Sauna in the storage room, basement, bathroom, or a former children's room, and even integrate it into the living room.
The space requirement is from approx. 1 m² depending on the model; the required room height is a minimum of 198 cm. If there is not enough space at the desired installation site for assembly, the cabin can also be assembled in front of or next to it and then carefully moved, depending on the floor covering.
A room temperature of at least 15° Celsius is recommended.
Depending on the model and installation site, the assembly can take one to two hours.
Assembly of the models at a glance
Infrared Sauna AT-1
- Assembly time approx. 30 minutes (2 people)
- largest single part: 180 x 105 x 6 cm
- Power connection: 230 V, 1400 Watt
- Tools: Phillips screwdriver PZ2, Allen key 4mm
- Power cable: 2.8 m from the top left rear
Infrared Sauna AT-2
- Assembly time approx. 30 minutes (2 people)
- largest single part: 180 x 120 x 6 cm
- Power connection: 230 V, 2100 Watt
- Tools: Phillips screwdriver PZ2, Allen key 4mm
- Power cable: 2.8 m from the top left rear

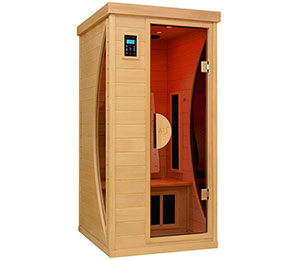

Infrared Sauna ATS-1
- Assembly time approx. 40 minutes (2 people)
- largest single part: 180 x 105 x 7 cm
- Power connection: 230 V, 1450 Watt
- Tools: Phillips screwdriver PZ2, Allen key 4mm
- Power cable: 2.8 m from the top left rear

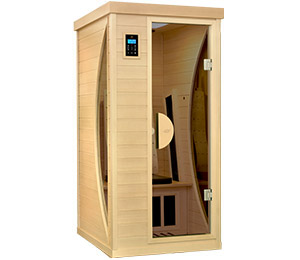

Infrared Sauna ATR-1
- Assembly time approx. 40 minutes (2 people)
- largest single part: 180 x 109 x 7 cm
- Power connection: 230 V, 1750 Watt
- Tools: Phillips screwdriver PZ2, Allen key 4mm
- Power cable: 2.8 m from the top left rear

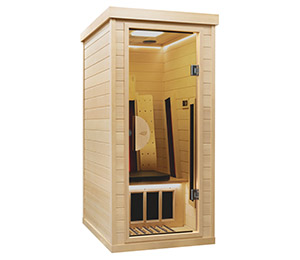

Infrared Sauna ATX-1
- Assembly time approx. 45 minutes (2 people)
- largest single part: 180 x 109 x 7 cm
- Power connection: 230 V, 2035 Watt
- Tools: Phillips screwdriver PZ2, Allen key 4mm
- Power cable: 2.8 m from the top left rear

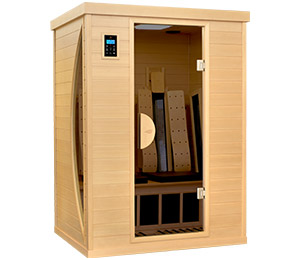

Infrared Sauna ATR-2
- Assembly time approx. 50 minutes (2 people)
- largest single part: 180 x 136 x 7 cm
- Power connection: 230 V, 2500 Watt
- Tools: Phillips screwdriver PZ2, Allen key 4mm
- Power cable: 2.8 m from the top left rear
Infrared Sauna ATR-2 XL
- Assembly time approx. 50 minutes (2 people)
- largest single part: 190 x 136 x 7 cm
- Power connection: 230 V, 2500 Watt
- Tools: Phillips screwdriver PZ2, Allen key 4mm
- Power cable: 2.8 m from the top left rear

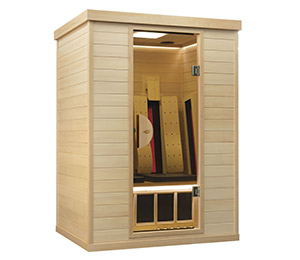

Infrared Sauna ATX-2
- Assembly time approx. 50 minutes (2 people)
- largest single part: 180 x 136 x 7 cm
- Power connection: 230 V, 2500 Watt
- Tools: Phillips screwdriver PZ2, Allen key 4mm
- Power cable: 2.8 m from the top left rear

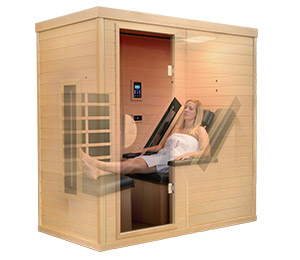

Infrared Sauna ATR Relax 1
- Assembly time approx. 120 minutes (2 people)
- largest single part: 195 x 100 x 9 cm
- Power connection: 230 V, 2450 Watt; 16 Ampere fuse protection
- Tools: Phillips screwdriver PZ2, Allen key 4mm
- Power cable: 2.8 m coming from the roof

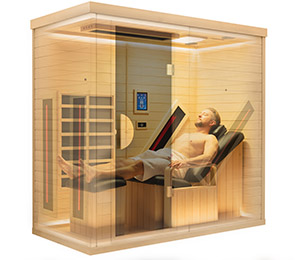

Infrared Sauna ATX Relax 1
- Assembly time approx. 150 minutes (2 people)
- largest single part: 202 x 100 x 9 cm
- Power connection: 230 V, 2750 Watt; 16 Ampere fuse protection
- Tools: Phillips screwdriver PZ2, Allen key 4mm
- Power cable: 2.8 m coming from the roof

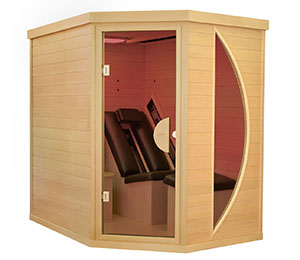

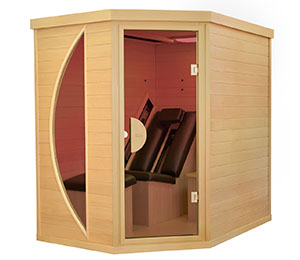

Infrared Sauna ATR Relax 1 L
- Assembly time approx. 120 minutes (2 people)
- largest single part: 195 x 143 x 12 cm
- Power connection: 230 V, 2850 Watt; 16 Ampere fuse protection
- Tools: Phillips screwdriver PZ2, Allen key 4mm
- Power cable: 2.8 m coming from the roof
Infrared Sauna ATR Relax 1 R
- Assembly time approx. 120 minutes (2 people)
- largest single part: 195 x 143 x 12 cm
- Power connection: 230 V, 2850 Watt; 16 Ampere fuse protection
- Tools: Phillips screwdriver PZ2, Allen key 4mm
- Power cable: 2.8 m coming from the roof

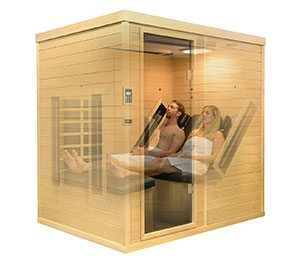

Infrared Sauna ATR Relax 2
- Assembly time approx. 180 minutes (2 people)
- largest single part: 195 x 145 x 9 cm
- Power connection: 230 V, 3450 Watt; 16 Ampere fuse protection
- Tools: Phillips screwdriver PZ2, Allen key 4mm
- Power cable: 2.8 m coming from the roof

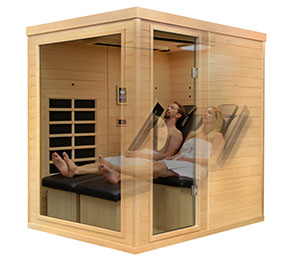

Infrared Sauna ATR Relax 2 Visio
- Assembly time approx. 180 minutes (2 people)
- largest single part: 195 x 145 x 9 cm
- Power connection: 230 V, 2840 Watt; 16 Ampere fuse protection
- Tools: Phillips screwdriver PZ2, Allen key 4mm
- Power cable: 2.8 m coming from the roof

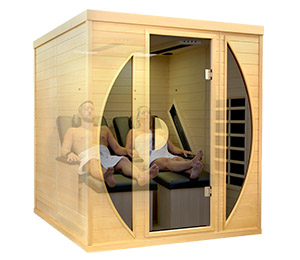

Infrared Sauna ATR Relax 2 Deluxe
- Assembly time approx. 180 minutes (2 people)
- largest single part: 180 x 121 x 7 cm or 150 x 170 x 12 cm
- Power connection: 230 V, 3530 Watt; 16 Ampere fuse protection
- Tools: Phillips screwdriver PZ2, Allen key 4mm
- Power cable: 2.8 m coming from the roof

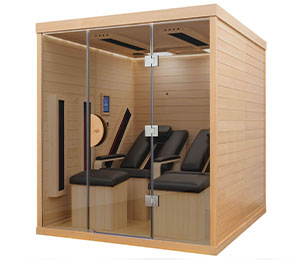

Infrared Sauna ATX Relax 2 Deluxe
- Assembly time approx. 180 minutes (2 people)
- largest single part: 180 x 121 x 7 cm or 140 x 170 x 12 cm
- Power connection: 230 V, 3600 Watt; 16 Ampere fuse protection
- Tools: Phillips screwdriver PZ2, Allen key 4mm
- Power cable: 2.8 m coming from the roof
