Delivery of the ATROPA Infrared Sauna

Assembly instructions


With the delivery you will receive a detailed assembly and operating instructions. However, you can also download the instructions in advance.





The individual steps in the assembly instructions must be carried out one after the other. If anything is unclear, do not hesitate to contact us:



Assembly of the Infrared Sauna



Individual parts



The construction of our Infrared Saunas was deliberately designed so that easy assembly is also possible for inexperienced people. Precisely fitting elements facilitate the assembly process; no prior electronic knowledge is necessary thanks to the prefabricated plug connections.

You can set up the ATROPA Infrared Sauna in the storage room, basement, bathroom or former children's room and even integrate it into the living room. The space required is from approx. 1 m², depending on the model, and the required room height is at least 205 cm. The time required for self-assembly is about one to two hours in total, depending on the model and the installation location.

The time required for the individual models are average values and refer to the assembly after all individual parts have been brought in.

Assembly of the models at a glance


Infrared Sauna A - 1


A - 1





  • Assembly time approx. 60 minutes (2 people)
  • largest single part: 180 x 90 x 6 cm
  • Power connection: 230 V, 1500 Watt
  • Tools:
  • Phillips screwdriver PZ2
  • Allen key 4mm
  • Power cable: 2.8 m from the top left rear

Infrared Sauna AS - 1


AS - 1





  • Assembly time approx. 60 minutes (2 people)
  • largest single part: 180 x 90 x 6 cm
  • Power connection: 230 V, 1500 Watt
  • Tools:
  • Phillips screwdriver PZ2
  • Allen key 4mm
  • Power cable: 2.8 m from the top left rear

Infrared Sauna ATS - 1


ATS - 1





  • Assembly time approx. 80 minutes (2 people)
  • largest single part: 180 x 105 x 7 cm
  • Power connection: 230 V, 1450 Watt
  • Tools:
  • Phillips screwdriver PZ2
  • Allen key 4mm
  • Power cable: 2.8 m from the top left rear

Infrared Sauna ATR - 1


ATR - 1





  • Assembly time approx. 80 minutes (2 people)
  • largest single part: 180 x 109 x 7 cm
  • Power connection: 230 V, 1750 Watt
  • Tools:
  • Phillips screwdriver PZ2
  • Allen key 4mm
  • Power cable: 2.8 m from the top left rear

Infrared Sauna ATX - 1


ATR - 1 XL





  • Assembly time approx. 90 minutes (2 people)
  • largest single part: 180 x 117 x 7 cm
  • Power connection: 230 V, 2035 Watt
  • Tools:
  • Phillips screwdriver PZ2
  • Allen key 4mm
  • Power cable: 2.8 m from the top left rear

Infrared Sauna ATX - 1 XL


ATX - 1 XL





  • Assembly time approx. 90 minutes (2 people)
  • largest single part: 190 x 117 x 7 cm
  • Power connection: 230 V, 2035 Watt
  • Tools:
  • Phillips screwdriver PZ2
  • Allen key 4mm
  • Power cable: 2.8 m from the top left rear

Infrared Sauna A - 2


A - 2





  • Assembly time approx. 90 minutes (2 people)
  • largest single part: 180 x 120 x 7 cm
  • Power connection: 230 V, 1950 Watt
  • Tools:
  • Phillips screwdriver PZ2
  • Allen key 4mm
  • Power cable: 2.8 m from the top left rear

Infrared Sauna AS - 2


AS - 2





  • Assembly time approx. 90 minutes (2 people)
  • largest single part: 180 x 120 x 7 cm
  • Power connection: 230 V, 1950 Watt
  • Tools:
  • Phillips screwdriver PZ2
  • Allen key 4mm
  • Power cable: 2.8 m from the top left rear

Infrared Sauna ATR - 2


ATR - 2





  • Assembly time approx. 90 minutes (2 people)
  • largest single part: 180 x 136 x 7 cm
  • Power connection: 230 V, 2500 Watt
  • Tools:
  • Phillips screwdriver PZ2
  • Allen key 4mm
  • Power cable: 2.8 m from the top left rear

Infrared Sauna ATR - 2 XL


ATR - 2 XL





  • Assembly time approx. 90 minutes (2 people)
  • largest single part: 190 x 136 x 7 cm
  • Power connection: 230 V, 2500 Watt
  • Tools:
  • Phillips screwdriver PZ2
  • Allen key 4mm
  • Power cable: 2.8 m from the top left rear

Infrared Sauna ATX - 2


ATX - 2





  • Assembly time approx. 90 minutes (2 people)
  • largest single part: 180 x 136 x 7 cm
  • Power connection: 230 V, 2850 Watt
  • Tools:
  • Phillips screwdriver PZ2
  • Allen key 4mm
  • Power cable: 2.8 m from the top left rear

Infrared Sauna ATX - 2 XL


ATX - 2 XL





  • Assembly time approx. 90 minutes (2 people)
  • largest single part: 190 x 136 x 7 cm
  • Power connection: 230 V, 2850 Watt
  • Tools:
  • Phillips screwdriver PZ2
  • Allen key 4mm
  • Power cable: 2.8 m from the top left rear

Infrared Sauna ATR - Corner


ATR - Corner





  • Assembly time approx. 70 minutes (2 people)
  • largest single part: 180 x 157 x 6 cm
  • Power connection: 230 V, 3450 Watt
  • Tools:
  • Phillips screwdriver PZ2
  • Allen key 4mm
  • Torx T20
  • Power cable: 2.8 m from the top in the left corner

Infrared Sauna ATR - Relax 1


Relax 1





  • Assembly time approx. 140 minutes (2 people)
  • largest single part (roof): 195 x 100 x 9 cm
  • Power connection: 230 V, 2450 Watt
  • Tools:
  • Phillips screwdriver PZ2
  • Allen key 4mm
  • Power cable: 2.8 m starting from the roof

Infrared Sauna ATX - Relax 1


ATX Relax 1





  • Assembly time approx. 140 minutes (2 people)
  • largest single part (roof): 202 x 100 x 9 cm
  • Power connection: 230 V, 2750 Watt
  • Tools:
  • Phillips screwdriver PZ2
  • Allen key 4mm
  • Power cable: 2.8 m starting from the roof

Infrared Sauna ATR - Relax 1 L


Relax 1 L





  • Assembly time approx. 160 minutes (2 people)
  • largest single part (roof): 195 x 143 x 9 cm
  • Power connection: 230 V, 2850 Watt
  • Tools:
  • Phillips screwdriver PZ2
  • Allen key 4mm
  • Power cable: 2.8 m starting from the roof

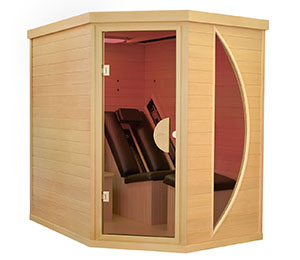

Infrared Sauna ATR - Relax 1 R


Relax 1 R





  • Assembly time approx. 160 minutes (2 people)
  • largest single part (roof): 195 x 143 x 9 cm
  • Power connection: 230 V, 2850 Watt
  • Tools:
  • Phillips screwdriver PZ2
  • Allen key 4mm
  • Power cable: 2.8 m starting from the roof

Infrared Sauna ATR - Relax 2


Relax 2





  • Assembly time approx. 180 minutes (2 people)
  • largest single part (roof): 195 x 143 x 9 cm
  • Power connection: 230 V, 3540 Watt
  • Tools:
  • Phillips screwdriver PZ2
  • Allen key 4mm
  • Power cable: 2.8 m starting from the roof

Infrared Sauna ATR - Relax 2 Deluxe


Relax 2 Deluxe





  • Assembly time approx. 190 minutes (2 people)
  • largest single part (roof): 180 x 120 x 9 cm or 150 x 170 x 12 cm
  • Power connection: 230 V, 3350 Watt
  • Tools:
  • Phillips screwdriver PZ2
  • Allen key 4mm
  • Power cable: 2.8 m starting from the roof

Infrared Sauna ATX - Relax 2 Deluxe


ATX Relax 2 Deluxe





  • Assembly time approx. 240 minutes (2 people)
  • largest single part (roof): 180 x 120 x 9 cm or 140 x 170 x 12 cm
  • Power connection: 230 V, 3800 Watt
  • Tools:
  • Phillips screwdriver PZ2
  • Allen key 4mm
  • Power cable: 2.8 m starting from the roof
