INFRARED HEATER ARRANGEMENT

Just as important as the quality of the infrared heater elements is their arrangement, because where the infrared rays do not reach, they cannot have an effect. An extra heater can't hurt, as long as you can switch it off."

Peter Gruber, Technical Services



Infrared Heater Arrangement and Customizability

Difference between AT / ATS / ATR / ATX Series


AT Series – Innovation for four generations

The AT series is now in its fourth generation, featuring numerous innovations and improvements.

Since the second generation, all infrared heaters can be individually switched on and off. This allows for targeted, circulation-friendly applications – for example, in the low-temperature range.

The third generation introduced the popular shoulder heaters. They provide deep relaxation and enable all-round irradiation.

In the fourth generation, the irradiation intensity is individually adjustable. Each heater can be set to three intensity levels.

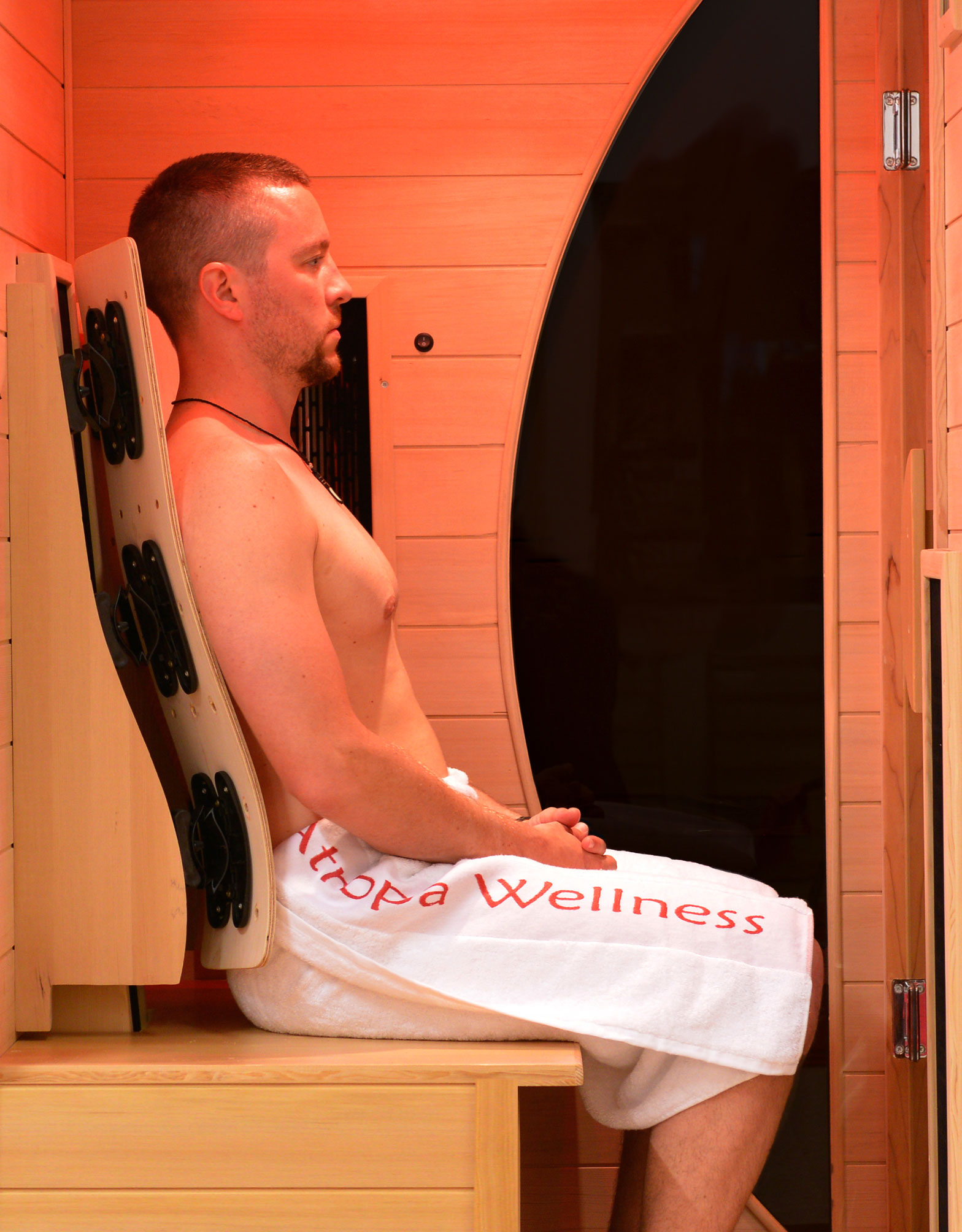

ATS Series – Intelligent Customization

The ATS series from ATROPA builds on the strengths of the AT series and offers even more comfort and flexibility through individual seat control.

An intelligent control system adjusts the heater intensity individually for each seat upon request. In addition, automatic programs developed by physiotherapists are available – you relax, the control system takes over.

Ergonomically shaped, flexible Abachi backrests complement the inclined deep heat heaters in the spinal area and allow for continuous deep heat irradiation for the entire back.


ATR Series – Maximum Deep Heat

The ATR series sets new standards: All heaters are powerful fourth-generation deep heat heaters.

Thanks to the Honeycomb housing, up to 16% more deep-acting infrared radiation is generated compared to conventional housings.

The heaters are arranged to target specific problem areas – for faster and more effective self-healing processes.

Particularly efficient: a spinal heater tilted by 13° for the lumbar region, as well as side heaters for the neck, shoulders, elbows, and hips. The front heater is also angled to bring even more infrared heat to the body's core.


ATX Series – Smart Control with Tablet

The ATX series takes the next step: A modern 7.7-inch tablet serves as the central control element.

You benefit from all the advantages of the ATR series – plus 6 instead of 4 automatic programs and a customizable MyFamily memory function.

New and unique is the individual heater control, which allows the intensity of each infrared heater to be regulated individually.

The innovative MyRecords function allows you to record and play back your own programs – every display setting is saved and can be recalled at any time.

Active ventilation is now also part of the equipment. In automatic mode, it optimally regulates temperature and fresh air supply; of course, it can also be operated manually.


ATROPA – Quality meets Efficiency

The ATROPA range is mature and well-thought-out. An intelligent heater arrangement, maximum customizability, and convincing cost-benefit efficiency make every Infrared Sauna a reliable companion for your well-being.

Arrangement

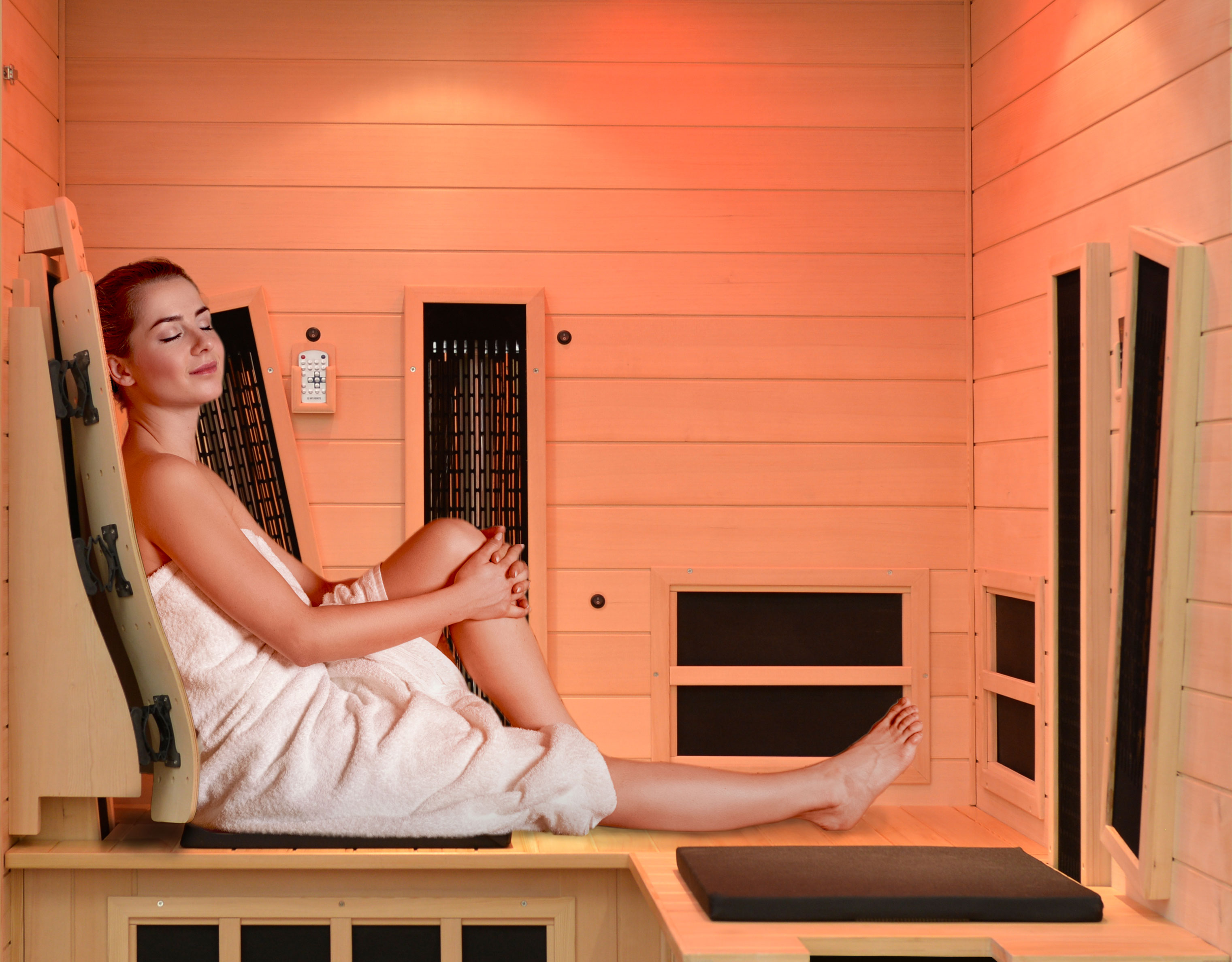

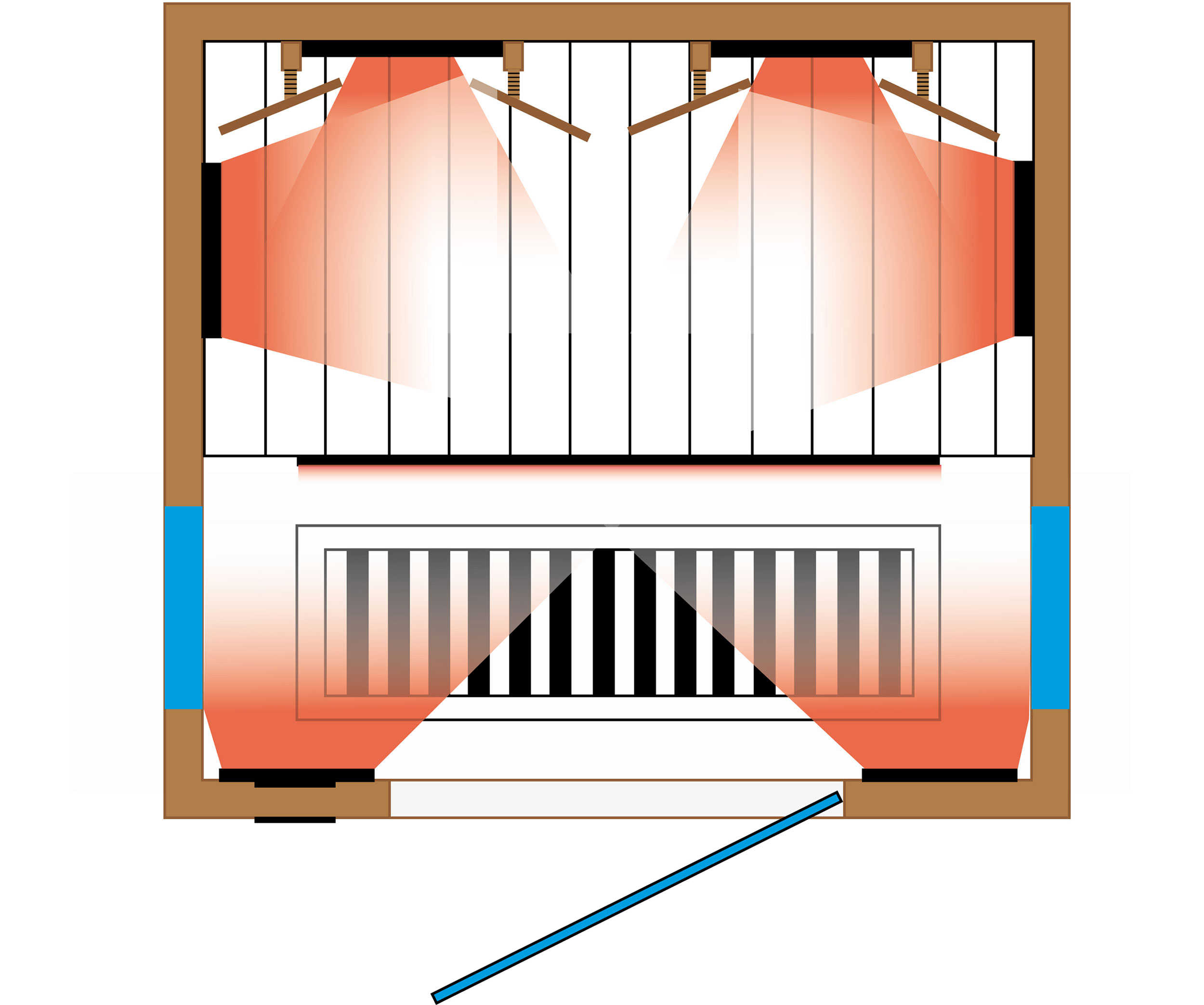

Heater concept

The arrangement of the infrared heaters in the ATROPA Infrared Sauna was developed in collaboration with physiotherapists and orthopedists. This ensures a physiologically correct and efficient infrared irradiation of most problem areas, such as the neck and spine, shoulders, knees, sinuses, and bronchial tubes. The main focus is on the patented deep heat infrared heater in the back area, which, thanks to its special arrangement, irradiates the entire spinal area from the cervical vertebrae to the sacrum with uniform deep heat.

At the bottom, there is a foot heater, which, together with the calf heater, ensures pleasantly warm feet and legs even in cold rooms. Of course, both can be switched off separately.

Customizability


Infrared sauna interior



Color light bath

Every person's body and needs are different.

The ATROPA Infrared Sauna is designed to respond to the needs and wishes of its users. Almost everyone experiences tension or pain after a certain age, which can be alleviated with the help of the healing infrared heat radiation. Sometimes you just want to relax and unwind, to end the cold and strenuous day in peace.

In the ATROPA Infrared Sauna, the operating mode can be switched from infrared therapy cabin to heat cabin or bio-sauna at the touch of a button. Depending on your needs, you can enjoy the deep heat (100%, deep heat), the intensive heat radiation (75%, heat cabin), or the gentle heat (50%, bio-sauna). It is also possible to sweat a little more after a few minutes of the therapy session at a reduced intensity level. In combination with the color light bath and the aroma scents, the beneficial effect of your wellness oasis can be fully exploited.

The optimal irradiation with infrared is achieved when you sit with the affected body parts directly in front of the infrared heater. It may happen that, for example, when treating the back, infrared irradiation of the shoulder is undesirable, perhaps to keep the cabin's internal temperature low or to save electricity. In this case, the respective infrared heater can be simply and separately switched off.

In general, all infrared heaters and heat heaters can be switched off individually. This allows the infrared irradiation to be tailored to one's own needs and helps, for example, when using a large Infrared Sauna by only one person, to save energy and thus money.

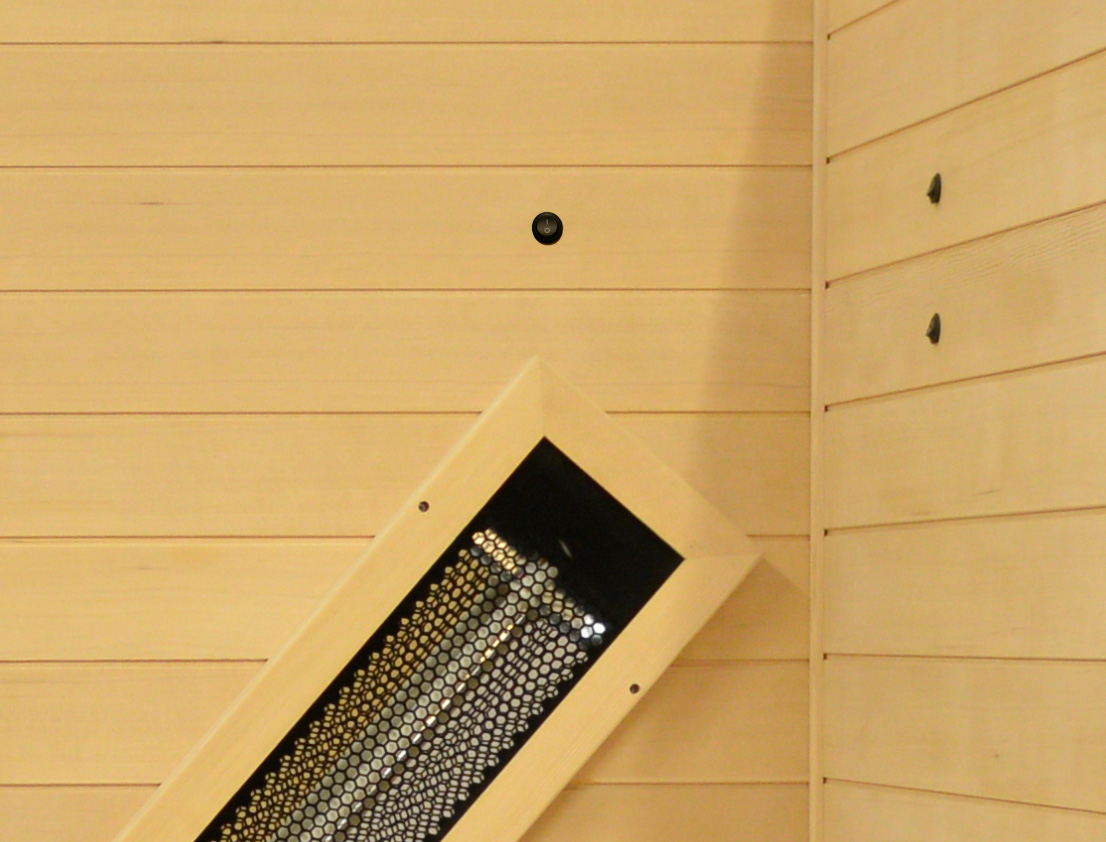

Switch

Infrared Heater Model Overview


Infrared Sauna A - 1

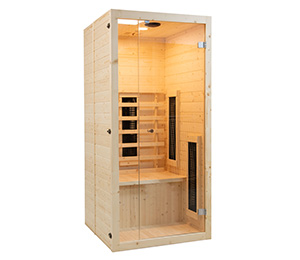

A - 1



Infrared sauna with 1 seat and 5 infrared rod heaters

  • 1 infrared heater in the spinal area
  • 2 shoulder heaters
  • 2 infrared heaters for knee joints and upper body
  • intensity of each side is adjustable
  • ergonomic backrest
  • Infrared Sauna AS - 1

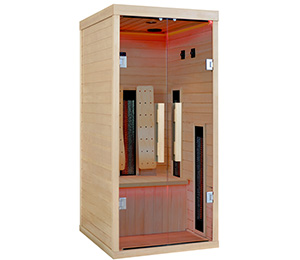

    AS - 1



    Infrared sauna with 1 seat, 5 infrared rod heatersand
    1 underfloor heating unit

  • 1 deep heat infrared heater in the spinal area
  • 2 shoulder heaters
  • 2 deep heat infrared heaters for knee joints and upper body
  • 1 underfloor heating unit (panel heater)
  • all heaters individually controllable
  • continuous back irradiation
  • flexible, ergonomic backrest
  • Infrared Sauna ATS - 1


    ATS - 1



    Infrared sauna with 1 seat, 4 infrared rod heaters and
    2 panel heaters

  • 1 deep heat infrared heater in the spinal area
  • 2 shoulder heaters
  • 1 front heater for knee joints and upper body
  • 1 underfloor heating unit (panel heater)
  • 1 calf heater (panel heater)
  • all heaters individually switchable
  • continuous back irradiation
  • flexible, ergonomic backrest
  • intensity of the back heater separately adjustable
  • Infrared Sauna ATR - 1


    ATR - 1



    Infrared sauna with 1 seat, 4 infrared rod heaters and
    2 panel heaters

  • 1 deep heat infrared heater in the spinal area
  • 2 deep heat infrared heaters at the shoulders
  • 1 deep heat infrared heater for knee joints and upper body
  • 1 underfloor heating unit (panel heater)
  • 1 calf heater (panel heater)
  • all heaters individually switchable
  • continuous back irradiation
  • flexible, ergonomic backrest
  • intensity of the back heater separately adjustable
  • Infrared Sauna ATR - 1 XL


    ATR - 1 XL



    Infrared sauna with 1 seat, 4 infrared rod heaters and
    2 panel heaters

  • 1 deep heat infrared heater in the spinal area
  • 2 deep heat infrared heaters at the shoulders
  • 1 deep heat infrared heater for knee joints and upper body
  • 1 underfloor heating unit (panel heater)
  • 1 calf heater (panel heater)
  • all heaters individually switchable
  • continuous back irradiation
  • flexible, ergonomic backrest
  • intensity of the back heater separately adjustable
  • Infrared Sauna ATX - 1


    ATX - 1



    Infrared sauna with 1 seat, 5 infrared rod heaters and
    2 panel heaters

  • 1 deep heat infrared heater in the spinal area
  • 2 deep heat infrared heaters at the shoulders
  • 2 deep heat infrared heaters for knee joints and upper body
  • 1 underfloor heating unit (panel heater)
  • 1 calf heater (panel heater)
  • all deep heat heaters individually adjustable and switchable
  • panel heaters individually switchable
  • continuous back irradiation
  • flexible, ergonomic backrest
  • Infrared Sauna ATX - 1 XL


    ATX - 1



    Infrared sauna with 1 seat, 5 infrared rod heaters and
    2 panel heaters

  • 1 deep heat infrared heater in the spinal area
  • 2 deep heat infrared heaters at the shoulders
  • 2 deep heat infrared heaters for knee joints and upper body
  • 1 underfloor heating unit (panel heater)
  • 1 calf heater (panel heater)
  • all deep heat heaters individually adjustable and switchable
  • panel heaters individually switchable
  • continuous back irradiation
  • flexible, ergonomic backrest
  • Infrared Sauna A - 2

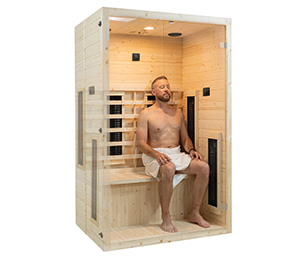

    A - 2



    Infrared sauna with 2 seats and 6 infrared rod heaters

  • 2 infrared heaters in the spinal area
  • 2 shoulder heaters
  • 2 infrared heaters for knee joints and upper body
  • intensity of each side is adjustable
  • ergonomic backrest
  • Infrared Sauna AS - 2

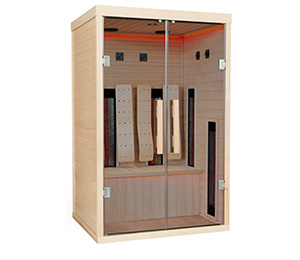

    AS - 2



    Infrared sauna with 2 seats, 6 infrared rod heaters and
    1 underfloor heating unit

  • 2 deep heat infrared heaters in the spinal area
  • 2 shoulder heaters
  • 2 deep heat infrared heaters for knee joints and upper body
  • 1 underfloor heating unit (panel heater)
  • all heaters individually controllable
  • continuous back irradiation
  • flexible, ergonomic backrest
  • Infrared Sauna ATR - 2


    ATR - 2



    Infrared sauna with 2 seats, 6 infrared rod heaters and
    2 panel heaters

  • 2 deep heat infrared heaters in the spinal area
  • 2 deep heat infrared heaters for the shoulder
  • 2 deep heat infrared heaters for knee joints and upper body
  • 1 underfloor heating unit (panel heater)
  • 1 calf heater (panel heater)
  • all heaters individually switchable
  • continuous back irradiation
  • flexible, ergonomic backrest
  • intensity of the seats separately adjustable
  • Infrared Sauna ATR - 2 XL


    ATR - 2 XL



    Infrared sauna with 2 seats, 6 infrared rod heaters and
    2 panel heaters

  • 2 deep heat infrared heaters in the spinal area
  • 2 deep heat infrared heaters for the shoulder
  • 2 deep heat infrared heaters for knee joints and upper body
  • 1 underfloor heating unit (panel heater)
  • 1 calf heater (panel heater)
  • all heaters individually switchable
  • continuous back irradiation
  • flexible, ergonomic backrest
  • intensity of the seats separately adjustable
  • Infrared Sauna ATX - 2

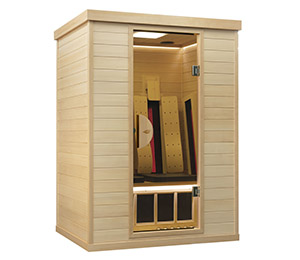

    ATX - 2



    Infrared sauna with 2 seats, 6 infrared rod heaters and
    2 panel heaters

  • 2 deep heat infrared heaters in the spinal area
  • 2 deep heat infrared heaters for the shoulder
  • 2 deep heat infrared heaters for knee joints and upper body
  • 1 underfloor heating unit (panel heater)
  • 1 calf heater (panel heater)
  • all heaters individually switchable
  • continuous back irradiation
  • flexible, ergonomic backrest
  • each deep heat infrared heater's intensity separately adjustable
  • Infrared Sauna ATX - 2 XL


    ATX - 2



    Infrared sauna with 2 seats, 6 infrared rod heaters and
    2 panel heaters

  • 2 deep heat infrared heaters in the spinal area
  • 2 deep heat infrared heaters for the shoulder
  • 2 deep heat infrared heaters for knee joints and upper body
  • 1 underfloor heating unit (panel heater)
  • 1 calf heater (panel heater)
  • all heaters individually switchable
  • continuous back irradiation
  • flexible, ergonomic backrest
  • each deep heat infrared heater's intensity separately adjustable
  • Infrared Sauna ATR - Corner

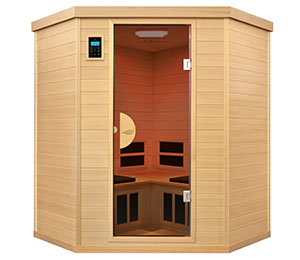

    ATR - Corner



    Infrared sauna with 4 seats, 8 infrared rod heaters and
    5 panel heaters

  • 4 SOLIS® deep heat infrared heaters in the spinal area
  • 4 SOLIS® deep heat infrared heaters for the shoulder
  • 2 CarboSens® foot heaters (panel heaters)
  • 2 CarboSens® calf heaters (panel heaters)
  • 1 underfloor heating unit (panel heater)
  • all heaters individually switchable
  • continuous back irradiation
  • flexible, ergonomic backrest
  • intensity of the seats separately adjustable
  • Infrared Sauna ATR - Relax 1 L / R


    ATR Relax 1 L



    Reclining Infrared sauna with 1 lounger and 1 seat,
    4 infrared rod heaters and 4 panel heaters

  • 2 SOLIS® deep heat infrared heaters in the spinal area
  • 2 SOLIS® deep heat infrared heaters for the shoulder
  • 2 CarboSens® underfloor heating units (panel heaters)
  • 1 panel heater
  • all heaters individually switchable
  • continuous back irradiation
  • flexible, ergonomic backrest
  • Infrared Sauna ATR - Relax 1


    Relax 2



    Reclining Infrared sauna with 1 lounger, 5 infrared rod heaters and
    2 panel heaters

  • 1 deep heat infrared heater in the spinal area
  • 2 deep heat infrared heaters for the shoulder
  • 1 deep heat infrared heater for the feet
  • 1 deep heat infrared heater on the ceiling
  • 1 underfloor heating unit (panel heater)
  • 1 panel heater on one side
  • all heaters individually switchable
  • continuous back irradiation
  • MyFamily memory function
  • Infrared Sauna ATX - Relax 1

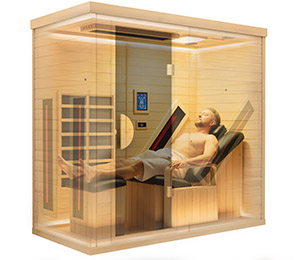

    Relax 2



    Reclining Infrared sauna with 1 lounger, 6 infrared rod heaters and 2 panel heaters

  • 1 deep heat infrared heater in the spinal area
  • 2 deep heat infrared heaters for the shoulder
  • 1 deep heat infrared heater on the ceiling
  • 2 deep heat infrared heaters for the feet
  • 1 underfloor heating unit (panel heater)
  • 1 panel heater on one side
  • all heaters individually switchable
  • continuous back irradiation
  • Electrically adjustable lounger
  • Improved hip irradiation through new armrests
  • MyFamily memory function
  • Infrared Sauna ATR - Relax 2

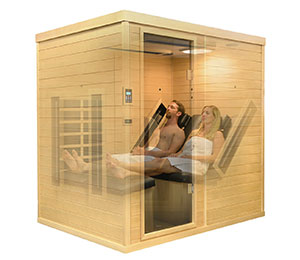

    Relax 2



    Reclining Infrared sauna with 2 loungers, 8 infrared rod heaters and
    2 panel heaters

  • 2 deep heat infrared heaters in the spinal area
  • 2 deep heat infrared heaters for the shoulder
  • 2 deep heat infrared heaters for the feet
  • 2 deep heat infrared heaters on the ceiling
  • 1 underfloor heating unit (panel heater)
  • 1 panel heater on one side
  • all heaters individually switchable
  • continuous back irradiation
  • MyFamily memory function
  • Infrared Sauna ATR - Relax 2 Deluxe

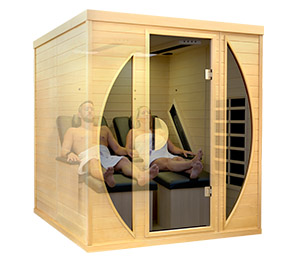

    Relax 2 Deluxe



    Reclining Infrared sauna with 2 loungers, 6 infrared rod heaters and
    5 panel heaters

  • 2 deep heat infrared heaters in the spinal area
  • 2 deep heat infrared heaters for the shoulder
  • 2 deep heat infrared heaters on the ceiling
  • 1 underfloor heating unit (panel heater)
  • 2 foot heaters for the feet
  • 2 panel heaters on both sides
  • all heaters individually switchable
  • continuous back irradiation
  • MyFamily memory function
  • Infrared Sauna ATX - Relax 2 Deluxe

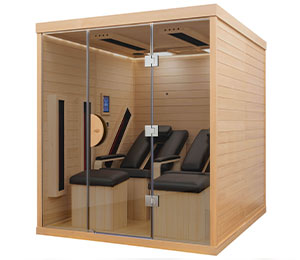

    ATX Relax 2 Deluxe



    Reclining Infrared sauna with 2 loungers, 10 infrared rod heaters and
    an underfloor heating unit

  • 2 deep heat infrared heaters in the spinal area
  • 2 deep heat infrared heaters for the shoulder
  • 2 deep heat infrared heaters for the knees
  • 2 deep heat infrared heaters for feet or sitting application
  • 2 deep heat infrared heaters for the upper body on the ceiling
  • 1 underfloor heating unit (panel heater)
  • Heaters individually controllable
  • continuous back irradiation
  • MyFamily memory function
  • MyRecords recording function
  • MyPrograms automatic program function
